Koshi Cladding - Square
Standard Hollow Section
Square profile
20 x 20mm
40 x 40mm
60 x 60mm
75 x 75mm
85 x 85mm
100 x 100mm
120 x 120mm
Koshi Cladding - Rectangle
Standard Hollow Section
Rectangle profile
20 x 40mm
30 x 50mm
30 x 60mm
30 x 85mm
50 x 100mm
50 x 150mm
85 x 170mm

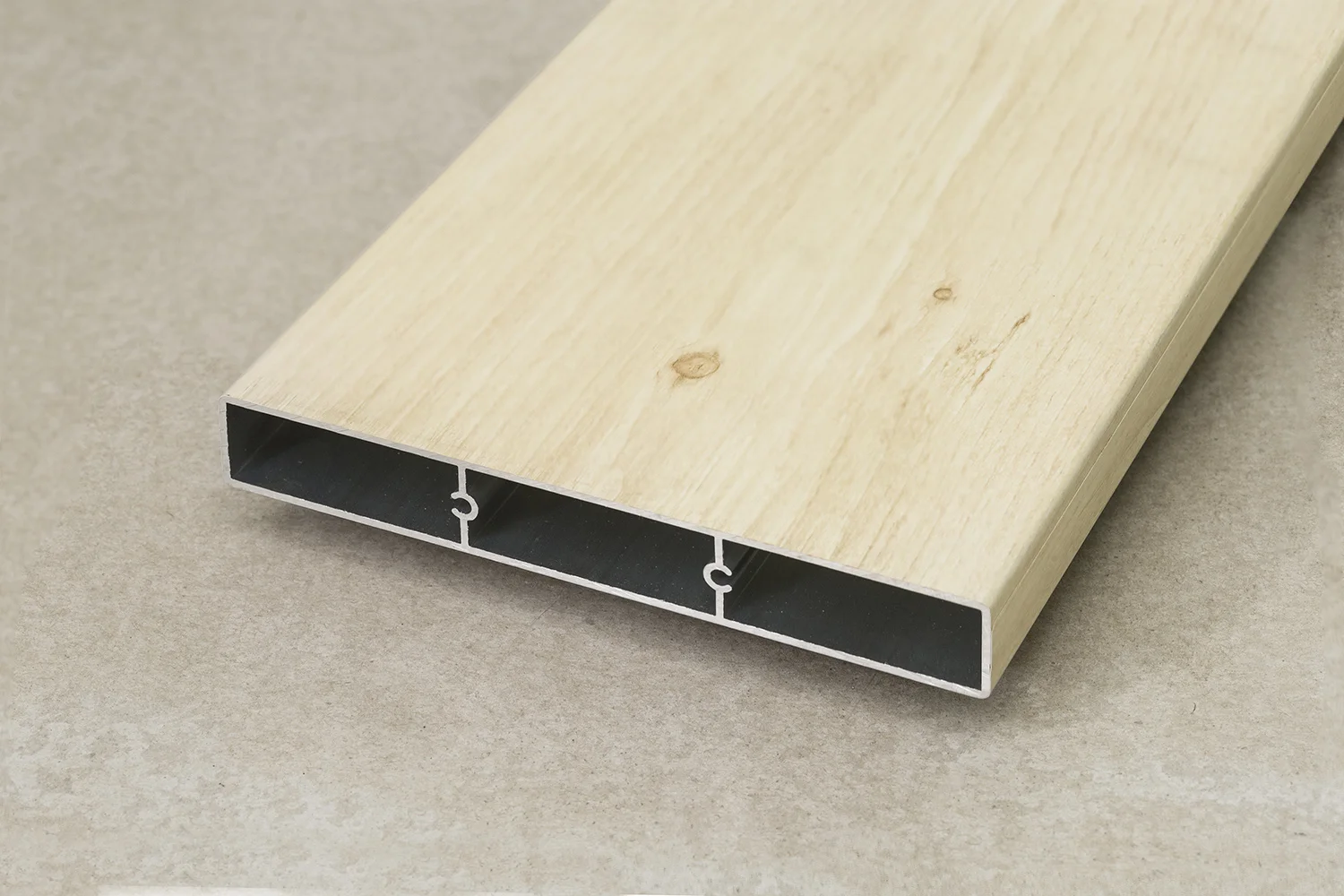

Koshi Cladding - Plank
Standard Hollow Section
Flat plank profile
w/ square edge
8 x 75mm
15 x 85mm
20 x 150mm
w/ round edge
13 x 120mm

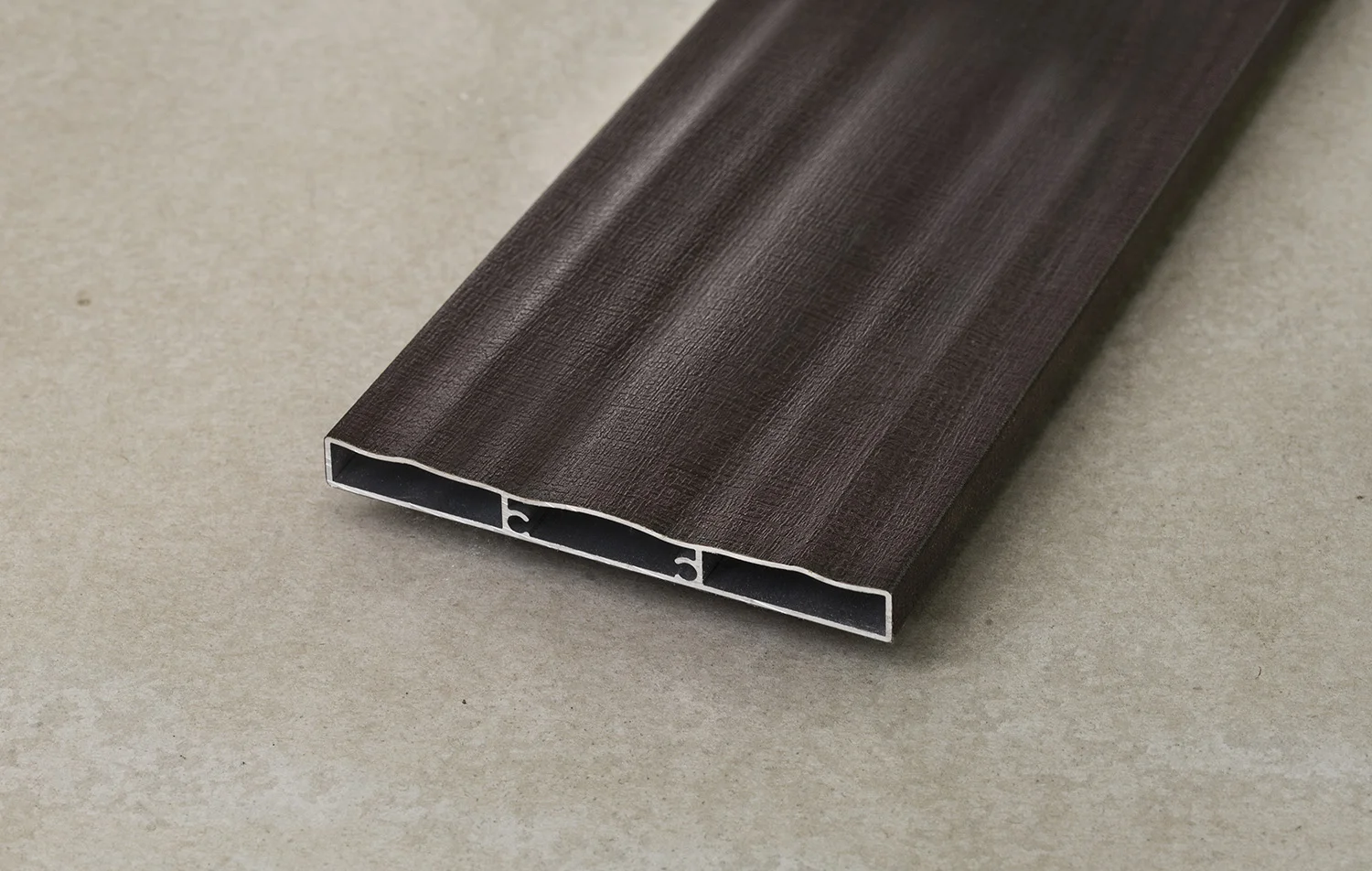

Koshi Cladding - Wave Plank
Standard Hollow Section
Waved plank profile
w/ square edge
10 x 100mm
10 x 150mm
w/ round edge
20 x 180mm

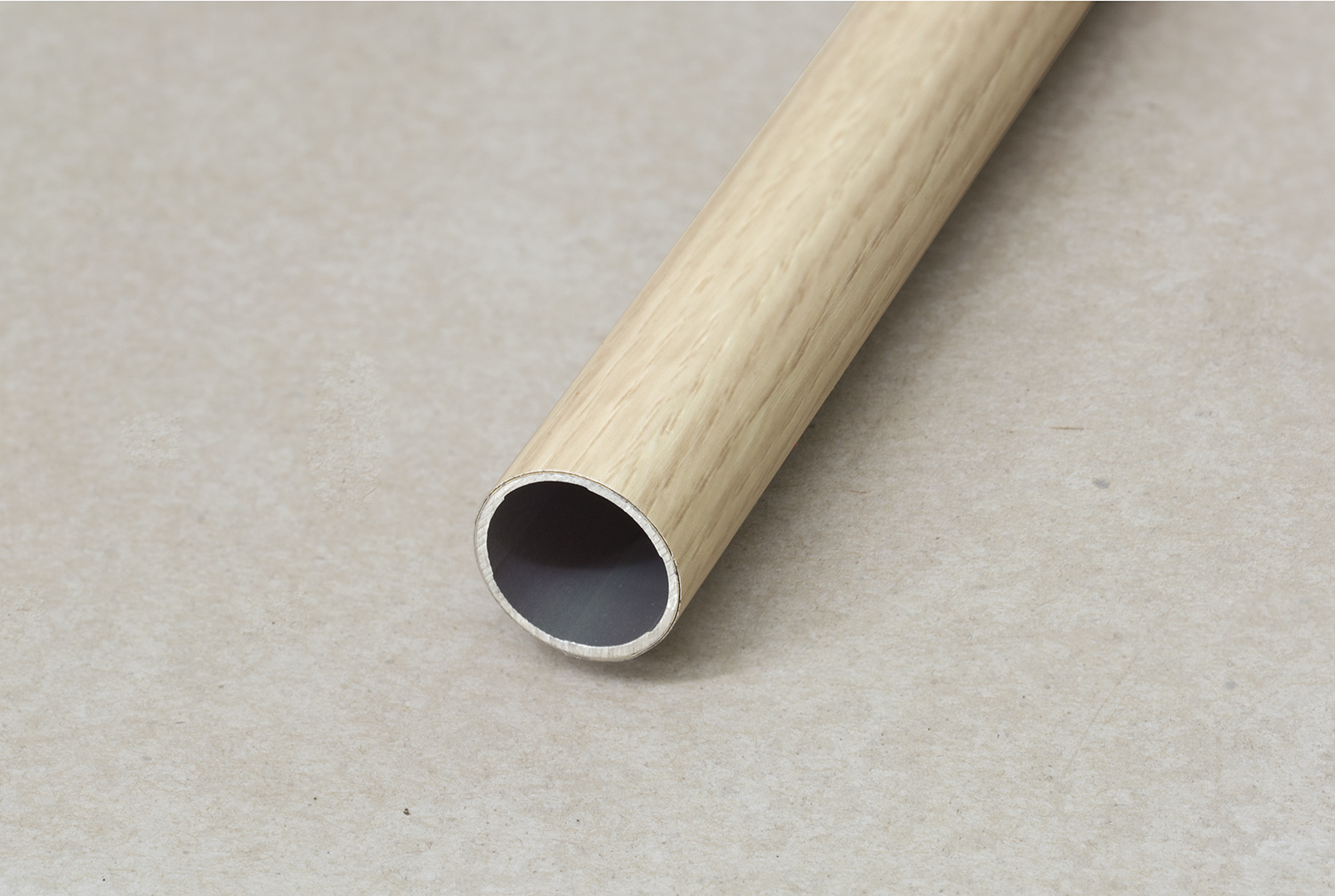

Koshi Cladding - Round
Standard Hollow Section
Round profile (d)
22mm
30mm
40mm
60mm
80mm
90mm

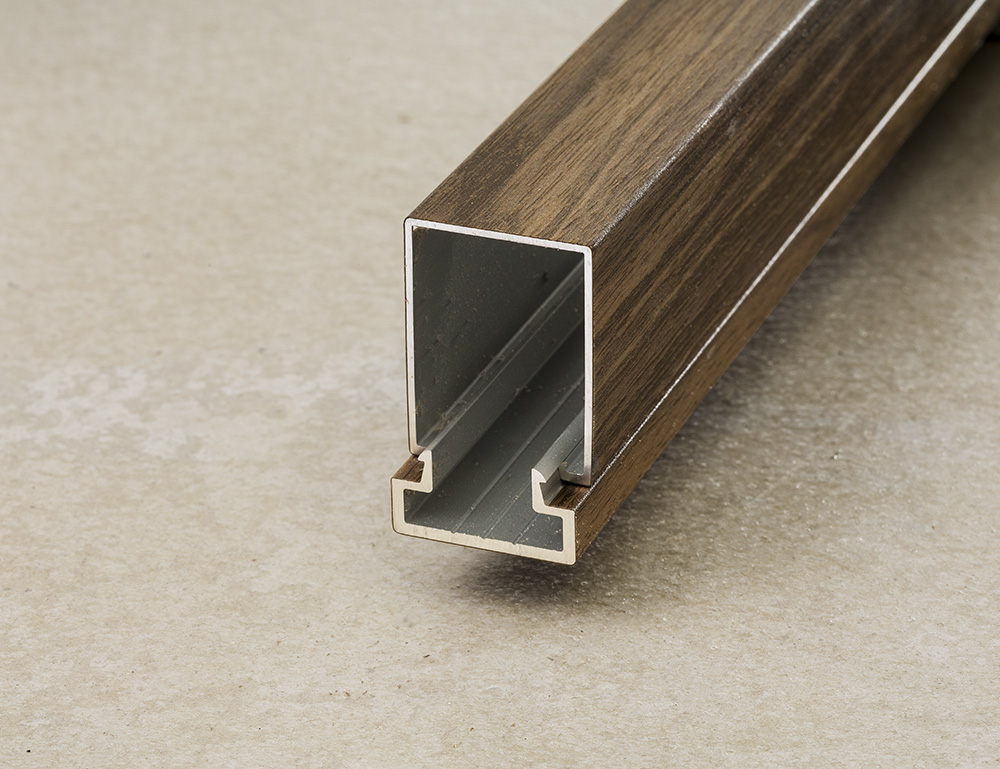

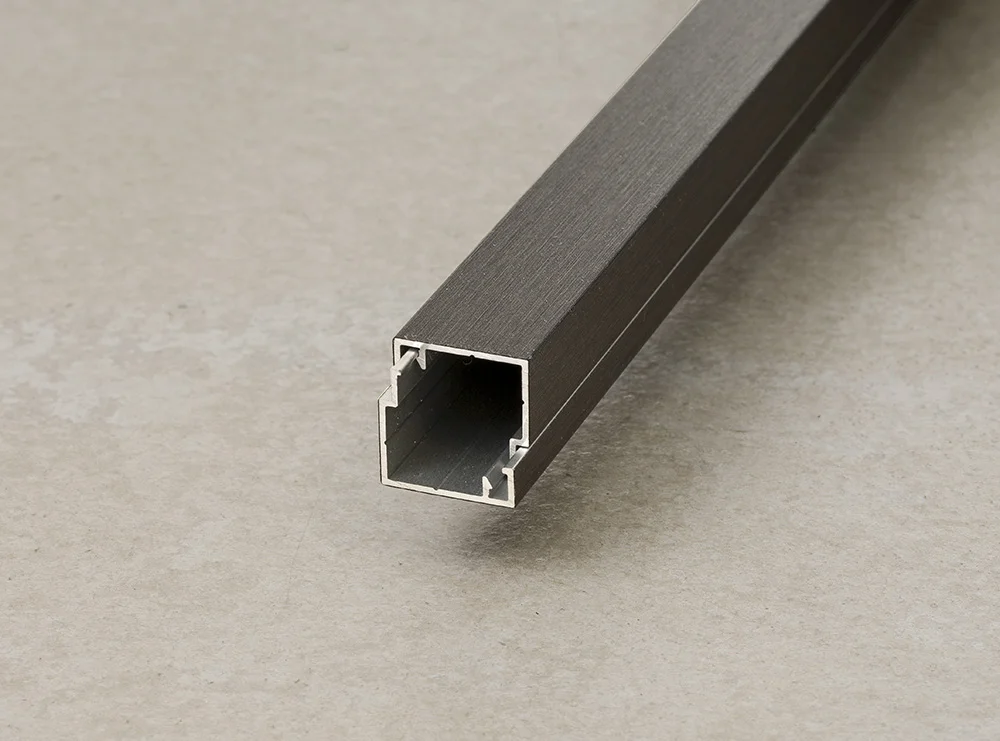

Kabebari Cladding - Square
Two Section Concealed Fix
20 x 20mm
Kabebari Cladding - Kogarana
Two Section Concealed Fix
24 x 27mm
Kabebari Cladding - Rectangle
Two Section Concealed Fix
20 x 20mm
24 x 27mm
30 x 30mm
30 x 50mm
30 x 85mm
50 x 50mm
50 x 100mm
100 x 100mm
Kabebari Cladding - Oki
Two Section Concealed Fix
100 x 100mm

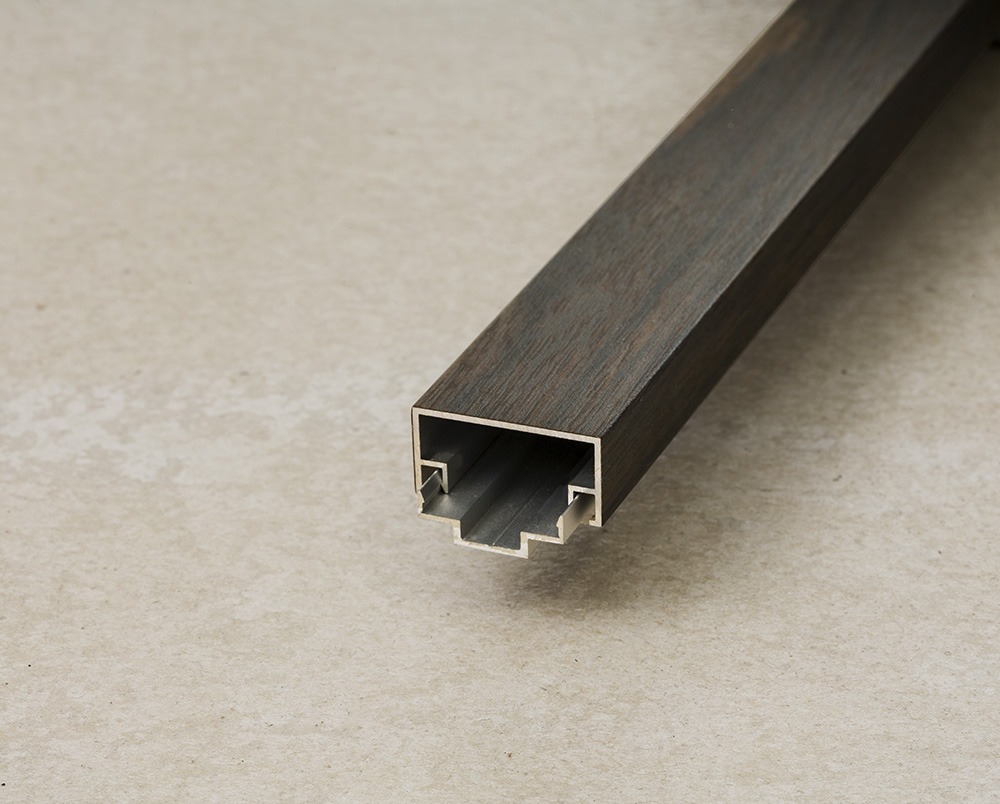

Kabebari Cladding - Slimline
Two Section Concealed Fix
Low profile batten
30 x 15mm
30 x 18mm
40 x 20mm
Kabebari Cladding - Plank
Two Section Concealed Fix
Flat or waved plank profile
100 x 12mm
Kabebari Cladding - Nami Plank
Two Section Concealed Fix
Wave plank profile
100 x 12mm
Kabebari Cladding - Curve
Two Section Concealed Fix
Slightly curved profile
w/ square edge
30 x 15mm
Kabebari Cladding - Round
Two Section Concealed Fix
Semi-circle profile
single
22 x 15mm
double
44.5 x 15mm
Kabebari Cladding - Mikadzuki
Two Section Concealed Fix
Curved profile
44 x 15mm
Kabebari Cladding - Domu
Two Section Concealed Fix
90 x 42mm
Mitzosuki Cladding
Bolt Fix Batten & L Bracket
Batten
30 x 50mm
30 x 60mm
40 x 100mm
50 x 100mm
60 x 30mm
Refer product specs for L bracket dimensions.
T2C Cladding
Section designed to pair with Standard Hollow Section Profiles
60x30mm
Koshi Screen Cladding - Prefabricated Framed Screens
Standard size
1710 x 1975mm
/w 30 x 60 Koshi
50mm spacing.
Custom sizes available.
Check with Covet as to what is possible.
Doubuchi Screen Cladding - Prefabricated Frameless Screens
Doubuchi Section designed to pair with Koshi Standard Hollow Section Profiles
50 x 30mm
Custom screen sizes.
Check with Covet as to what is possible.

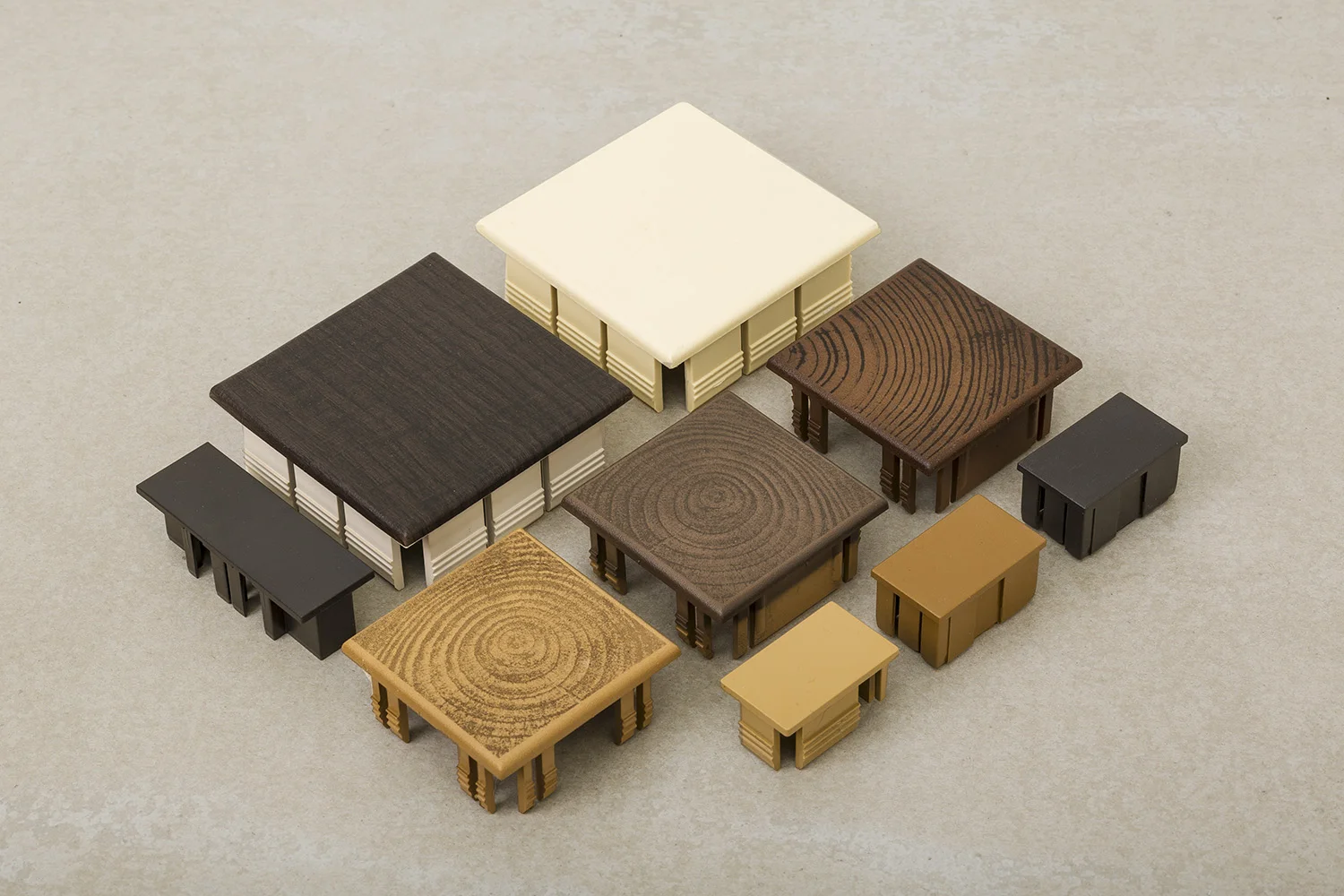

Ever Art Wood® End Caps
Several end cap finishes are available to suit our extensive range of Ever Art Wood® batten profiles. Choose from our standard colour coded ABS caps, painted aluminum caps for specific profiles, or upgrade to our premium ‘Moku’ wood grain end caps for when detail is everything.
